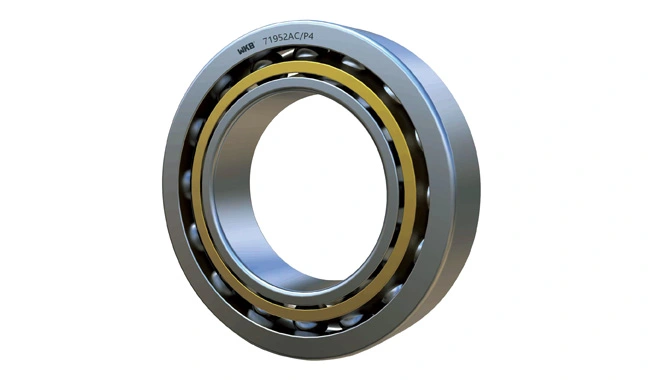

Single Row Angular Contact Ball Bearings

Name: Single Row Angular Contact Ball Bearings
Brand: WKB (Wafangdian) Bearing Technology Co., Ltd.
Price: 150-800 USD
Rating: 4.8 (50 reviews)

Single Row Angular Contact Ball Bearings feature a single row of balls inclined to the bearing axis, enabling them to accommodate both radial and axial loads. Ideal for precision machinery and automotive applications, they offer high-speed capabilities, precise alignment, and efficient load distribution, ensuring reliable performance in various industries.

Features of Single Row Angular Contact Ball Bearings

Dual Load Support: Single Row Angular Contact Ball Bearings manage both radial and axial loads due to their inclined ball arrangement, making them versatile for various applications.
High-Speed Capability: These bearings are suitable for high-speed operations, making them valuable in applications where rapid rotation is essential.
Precise Alignment: Angular contact design allows for precise alignment between the bearing and its components, minimizing stress and improving efficiency.
Efficient Load Distribution: With their ball configuration, these bearings distribute loads evenly, minimizing wear and enhancing overall performance in diverse industrial contexts.

Products

Specs of Single Row Angular Contact Ball Bearings

Single Row Angular Contact Ball Bearing

70 mm-150 mm Single Row Angular Contact Ball Bearings Specs

Basic Size			Basic load rating dynamic, static		Code	Limiting Speed		Mass	Dimensions						Abutment and chamfer dimensions					Calculation coefficient
d	D	B	C	C。		grease	oil		d	d_1≈	D_1≈	r_1.2min	r_3.4min	a	d_amin	D_amax	D_bmax	r_amax	r_bmax	e	X	Y	Y₀
mm			kN		-	r/min		kg												-
70	125	24	75.4	62	7214ACM	5600	8000	1.24	70			1.5	0.6	34.1	79	116		1.5
	125	24	79.3	65	7214CT	8500	11000	1.26				1.5	0.6	25.1	79	116		1.5
	125	24	79.3	65	7214C	8500	11000	1.1				1.5	0.6	25.1	79	116		1.5
	150	35	134	100	7314CM	6500	8000	3.01				2.1	1.1	32.2	82	138		2
75	130	25	79.3	67	7215ACM	5600	7500	1.34	75			1.5	0.6	36.4	84	121		1.5
	130	25	78.7	66.5	7215C	6800	8500	1.2				1.5	0.6	26.2	87	121		1.5
	160	37	140	109	7315ACM	3800	5000	3.57				2.1	1.1	45.9	87	148		2
	160	37	125	97	7315B	2700	3800	3.3				2.1	1.1	67.8	91	148		2
80	140	26	126	82.5	7216C	3800	5000	1.45	80			2	1.1	59	90	129		2
	140	26	92.3	79	7216AC	5000	7100	1.45				2	1	38.7	92	130		2
	170	39	135	109	7316BM	3400	4500	4.15				2.1	1.1	71.9	94	158		2
	200	48	195	168	7416AC	2600	3800	7.18				3	1.1	56.7	99	186		2.5
85	180	41	146	122	7317BM	3000	4000	5.61	85			3	1.1	76.1	99	166		2.5
85	180	41	165	137	7317ACM	3200	4300	4.99	85			3	1.1	76	99	166		2.5
90	160	30	117	100	7218ACM	4500	6000	2.39	90			2	1	44.1.	100	150		2
	160	30	122	105	7218C	6300	9000	2.58				2	1	31.7	100	150		2
	190	43	135	152	7318AC	3000	4000	5.82				3	1.1	80	104	176		2.5
	225	54	233	214	7418ACM	2900	4000	11.6				4	1.5	63.8	108	207		3
95	145	24	53.5	69	7019ACM	5200	6300	1.44	95			1.5	0.6	40	93	135		1.5
	170	32	139	120	7219C	4800	6800	2.7				2.1	1.1	33.8	107	158		2
	170	32	116	101	7219B	3000	4000	3.24				2.1	1.	71.7	107	158		2
	170	32	133	114	7219ACM	4300	5600	3.3				2.1	2.1	46.9	107	158		2
	200	45	168	150	7319BM	2900	3900	7.07				3	1.1	84.4	109	186		2.5
100	180	34	156	136	7220CM	5600	8000	3.3	100			2.1	1.1	35.8	112	168		2
	180	34	148	130	7220AC	4000	5300.	3.3				2.1	1.1	49.6	112	168		2
	180	34	130	114	7220BM	2800	3800	4				2.1	1.1	75.7	112	168		2
	215	47	203	190	7320C	2400	3400	7.25				3	1.1	90	114	201		2.5
	215	47	210	198	7320AC	2600	3600	8.33				3	1.1	90	114	201		2.5
	215	47	190	177	7320B	1900	2700	7.25				3	1.1	89.6	114	201		2.5
105	190	36	148	137	7221C	2800	3800	3.95	105			2.1	1.1	80	117	178		2
	190	36	131	114	7221ACM	2800	3800	4.36				2.1	1.1	80	117	178		2
	190	36	148	137	7221B	2800	3800	3.95				2.1	1.1	80	117	178		2
105 (cont.)	225	49	203	193	7321C	2200	3200	8.45	105 (cont.)			3	1.1	94	119	211		2.5
	225	49	203	193	7321AC	2200	3200	8.45				3	1.1	94	119	211		2.5
	225	49	202	193	7321BM	2400	3200	9.51				3	1.1	93.7	119	211		2.5
110	200	38	185	171	7222C	5000	7100	4.65.	110			2.1	1.1	39.8	122	188		2
	200	38	176	164	7222AC	3600	4800	4.65				2.1	1.1	55.1	122	188		2
	200	38	153	144	7222BM	2600	3400	4.65				2.1	1.1	84	122	188		2
	240	50	191	240	7322CM	3600	4800	9.85				3	1.1	48.4	124	210		2.5
	240	50	239	231	7322ACM	2600	3400	9.85				3	1.1	65.8	124	226		2.5
	240	50	213	212	7322B	1800	2400	9.85				3	1.1	99.3	124	226		2.5
120	180	28	100	107	7024ACM	3600	5000	2.62	120			2	1	49	130	170		2
	215	40	198	192	7224CM	2200	3200	6.1				2.1	1.1	90	132	203		2
	215	40	190	184	7224AC	2200	3200	6.1				2.1	1.1	98.1	137	199		2
	215	40	165	163	7224B	2200	3200	6.1				2.1	1.1	90	132	203		2
	260	55	178	288	7324CM	3400	4000	14.5				3	1.1	52.9	134	246		2.5
	260	55	265	269	7324AC	2200	3000	14.5				3	1.1	71.8	134	246		2.5
	260	55	251	262	7324B	1600	2200	14.5				3	1.1	107.2	134	246		2.5
130	230	40	207	209	7226CM	2400	3200	6.95	130			3	1.1	44.1	144	216		2.5
	230	40	196	200	7226ACM	2400	3200	6.95				3	1.1	62	144	216		2.5
	230	40	170	175	7226BM	2200	3000	7.56				3	1	95.5	144	216		2.5
	280	58	251	270	7326C	1800	2600	17.5				4	1.5	115	148	262		3
	280	58	251	270	7326AC	1800	2600	17.5				4	1.5	115	148	262		3
	280	58	250	268	7326B	1800	2400	17.9				4	1.5	115.1	148	262		3
140	210	33	125	137	7028AC	3200	4300	3.85	140			2	1	57.3	150	200		2
	250	42	231	243	7228CM	4200	5000	8.85				3	1.1	47.1	154	236		2.5
	250	42	220	237	7228ACM	2200	3000.	8.85				3	1.1	66.5	154	236		2.5
	250	42	191	207	7228BM	2000	2800	8.85				3	1.1	103	154	236		2.5
	300	62	276	310	7328AC	1700	2400	21.5				4	1.5	123	158	282		3
	300	62	275	300	7328B	1600	2200	21.5				4	1.5	123	158	282		3
150	225	35	153	170	7030AC	1900	2800	4.7	150			2.1	1.1	96	160	219		2

150(cont.) mm-360 mm Single Row Angular Contact Ball Bearings Specs

Basic Size			Basic load rating dynamic, static		Code	Limiting Speed		Mass	Dimensions						Abutment and chamfer dimensions					Calculation coefficient
Basic Size			Basic load rating dynamic, static		Code	Limiting Speed		Mass	Dimensions						Abutment and chamfer dimensions					Calculation coefficient
d	D	B	C	C。		grease	oil		d	d_1≈	D_1≈	r_1.2min	r_3.4min	a	d_amin	D_amax	D_bmax	r_amax	r_bmax	e	X	Y	Y₀
mm			kN		-	r/min		kg												-
150 (cont.)	270	45	242	268	7230AC	2000	2800	12.1	150 (cont.)			3	1.1	71.5	164	256		2.5
	270	45	195	222	7230BM	1700	2400	11.5				3	1.1	111	164	256		2.5
	320	65	359	429	7330AC	1800	2400	26				4	1.5	87.6	168	302		3
	320	65	317	380	7330B	2300	2000	26				4	1.5	131	168	302		3
160	240	38	161	183	7032ACM	1800	2200	5.95	160			2.1	1.1	65.6	172	228		2
	290	48	250	289	7232AC	1900	2600	14.5				3	1.1	76.5	174	276		2.5
	290	48	263	304	7232C	2900	3600	14.5				3	1.1	54.1	174	276		2.5
170	310	52	306	371	7234AC	1800	2400	17.5	170			4	1.5	82	188	292		3
	310	52	266	325	7234B	1600	2200	17.5				4	1.5	126.7	187	293		3
	360	72	430	491	7334AC	1400	1900	36.6				4	1.5	147	187	343		3
	360	72	380	495	7334B	1350	1800	36				4	1.5	147	188	342		3
180	280	46	190	235	7036B	1650	2200	10	180			2.1	1.1	119	192	268		2
	320	52	317	399	7236AC	1700	2200	18				4	1.5	84.3	198	302		3
	320	52	333	418	7236C	2700	3200	18				4	1.5	59.5	198	302		3
	380	75	455	605	7336AC	1300	1800	42.5				4	1.5	156	197	363		3
	380	75	404	536	7336B	1350	1800	37				4	1.5	155	198	362		3
190	290	46	215	263	7038AC	1800	2400	10.5	190			2.1	1.1	78	202	278		2
	340	55	257	430	7238AC	1500	2000	22.4				4	1.5	89.3	222	324		3
	340	55	276	355	7238B	1400	1900	22				4	1.5	139	208	322		3
	400	78	410	560	7338AC	1200	1700	48.5				5	2	164	212	378		4
	400	78	430	600	7338B	1150	1600	48.5				5	2	164	212	378		4
200	420	80	475	670	7340AC	1100	1600	56.3	200			5	2	170	220	400		4
200	420	80	450	660	7340B	1000	1500	53	200			5	2	170	220	400		4
220	340	56	239	318	7044B	1300	1800	18	220			3	1.1	145	234	326		2.5
	400	65	423	605	7244AC	1100	1600	37				4	1.5	104.7	238	382		3
	460	88	480	730	7344B	1000	1400	71				5	2	187	242	440		4
240	360	56	250	380	7048B	1150	1600	19.5	240			3	1.1	154	256	345		2.5
	440	72	519	626	7248B	1000	1500	50.9				4	1.5	178.5	258	411		3
	500	95	540	850	7348B	850	1200	89				5	2	203	262	481		4
260	320	28	127	190	71852AC	1400	1900	4.85	260			2	1.1	98	270	310		2
	360	46	260	380	71952AC	900	1400	13.5				2.1	1.1	95.3	291	348		2
	480	80	495	790	7252B	850	1200	67				5	2	195	280	460		4
280	350	33	156	240	71856AC	1200	1700	7.2	280			2	1	107	290	340		2
	380	46	268	405	71956AC	800	1300	15.7				2.1	1.1	99.9	292	368		2
	420	65	351	550	7056C	1000	1500	30				4	1.5	134	298	402		3
	420	65	332	507	7056AC	900	1400	30				4	1.5	179	298	402		3
	420	65	310	500	7056B	900	1300	31				4	1.5	179	296	406		3
	500	80	500	840	7256B	800	1200	70.5				5	2	204	300	480		4
300	460	74	410	690	7060C	950	1300	43	300			4	1.5	147	318	442		3
	460	74	400	665	7060AC	950	1400	46.5				4	1.5	147	317	443		3
	460	74	360	620	7060B	900	1200	43				4	1.5	196	318	442		3
	540	85	553	930	7260B	850	1200	86.5				5	2.1	219	322	518		4
320	480	74	416	700	7064AC	800	1100	47.5	320			4	1.5	130	385	445		3
	480	74	391	651	7064B	850	1200	44.5				4	1.5	205	338	462		3
	580	92	624	1120	7264B	750	1000	110				5	2	236	342	558		4
340	420	38	196	325	71868AC	950	1400	11.4	340			2.1	1.1	129	351	409		2
	460	56	330	575	71968AC	900	1350	27				3	1.1	126	354	446		2.5
	460	56	296	530	71968B	850	1200	27				3	1.1	196	354	446		2.5
	520	82	510	1050	7068AC	800	1100	61.5				5	2	141.3	360	500		4
	520	82	449	815	7068B	800	1100	61.5				5	2	223	362	498		4
	620	92	685	1320	7268B	700	1000	128				6	3	248	366	593		5
360	440	38	228	430	71872AC	1800	2650	12.5	360			2.1	1.1	112	371	430		2
	480	56	340	630	71972AC	900	1300	29.5				3	1.1	126	374	468		2.5
	480	56	290	540	71972B	850	1000	29.5				3	1.1	204	374	468		2.5

360(cont.) mm-750 mm Single Row Angular Contact Ball Bearings Specs

Basic Size			Basic load rating dynamic, static		Code	Limiting Speed		Mass	Dimensions						Abutment and chamfer dimensions					Calculation coefficient
Basic Size			Basic load rating dynamic, static		Code	Limiting Speed		Mass	Dimensions						Abutment and chamfer dimensions					Calculation coefficient
d	D	B	C	C。		grease	oil		d	d_1≈	D_1≈	r_1.2min	r_3.4min	a	d_amin	D_amax	D_bmax	r_amax	r_bmax	e	X	Y	Y₀
mm			kN		-	r/min		kg												-
360 (cont.)	540	82	515	913	7072AC	1000	1300	62.5	360 (cont.)			5	2	171	382	518		4
	540	82	441	824	7072B	750	1000	62.5				5	2	230	382	518		4
	650	95	635	1240	7272B	700	950	152				6	3	261	387	624		5
380	480	31	185	340	70876A	860	1200	13.5	380			2	1	142	390	470		2
	480	46	285	495	71876AC	860	1200	18.5				2.1	1.1	123	392	470		2
	520	65	415	760	71976AC	800	1100	41.5				4	4	222	395	505		3
	560	82	495	940	7076A	810	1100	66				5	2	177	399	541		4
	560	82	455	880	7076B	760	1000	66				5	2	238	399	541		4
400	540	65	420	780	71980AC	800	1100	44.3	400			4	4	168	415	525		3
	600	90	585	1120	7080C	750	1000	85				5	2	189	422	578		4
	600	90	590	1170	7080A	740	1000	91.5				5	2	189	418	580		4
	600	90	515	1010	7080B	710	960	91.5				5	2	255	418	580		4
	720	103	728	1500	7280B	600	800	190				6	3	287	428	692		5
420	560	65	410	820	71984A	810	1100	46.5	420			4	1.5	174	436	545		3
	560	65	355	670	71984B	810	1100	46.5				4	1.5	238	436	545		3
	620	90	590	1160	7084A	710	960	97				5	2	195	439	601		4
	620	90	525	1040	7084B	680	910	93				5	2	263	440	602		4
440	650	94	635	1300	7088A	710	960	100	440			6	3	204	464	626		5
440	650	94	560	1170	7088B	630	840	100	440			6	3	276	464	626		5
460	580	37	259	550	70892A	760	1000	25.5	460			2.1	1	169	472	568		2
	580	56	362	760	71892A	760	1000	34.5				3	3	178	474	566		2.5
	580	56	335	635	71892AC	750	1000	34.8				3	1.1	169	471	569		2
	680	100	675	1450	7092A	670	910	121				6	3	215	484	656		5
	680	100	605	1280	7092B	610	800	121				6	3	289	484	656		5
480	700	100	685	1540	7096A	630	840	126	480			6	3	220	503	677		5
480	700	100	610	1330	7096B	550	740	126	480			6	3	298	503	677		5
500	620	37	270	610	708/500A	660	890	27.5	500			2.1	1.1	180	512	610		2
	620	56	390	810	718/500AMB	600	850	38				3	1.1	190	513	607		2.5
	670	78	540	1210	719/500A	620	850	78				5	2	208	520	651		4
	720	100	700	1610	70/500A	610	810	132				6	3	226	526	696		5
	720	100	620	1410	70/500B	550	760	132				6	3	306	526	696		5
530	650	56	350	715	718/530AC	630	850	40.1	530			3	3	198	543	637		2.5
	650	56	380	890	718/530AC	620	840	39.5				3	1.1	198	543	637		2.5
	710	82	600	1350	719/530AC	610	810	93				5	2	186	559	691		4
	780	112	815	1880	70/530A	550	740	178				6	3	245	554	756		5
	780	112	725	1690	70/530B	510	680	193				6	3	332	554	756		5
560	680	56	385	920	718/560A	600	810	42	560			3	1.1	207	574	668		2.5
	750	85	580	1270	719/560A	550	740	107				5	2	232	578	733		4
	820	115	880	2140	70/560A	520	710	195				6	3	257	584	798		5
600	730	42	330	730	708/600A	560	740	39	600			3	1.1	212	613	717		2.5
	730	60	405	880	718/600B	720	760	54.6				3	1.1	185	614	716		2.5
	730	60	405	880	718/600ACM	720	760	54.6				3	1.1	185.1	613	717		2.5
	800	90	700	1720	719/600AC	540	710	125				5	2	208	620	781		4
	870	118	865	2150	70/600A	470	620	230				6	3	273	624	845		5
670	820	69	540	1280	718/670AC	490	640	80	670			4	1.5	208	686	804		3
	820	69	527	1250	718/670B	480	630	80				4	1.5	250	688	802		3
	980	136	1140	3180	70/670A	470	630	345				7.5	4	306	699	951		6
710	870	74	555	1350	718/710AC	450	600	96.4	710			4	4	265	725	855		3
	870	74	530	1290	718/710Ac	450	600	99.9				4	1.5	265	725	855		3
	950	106	830	2220	719/710AC	450	600	200				6	3	247	734	926		5
	1030	140	1160	3200	70/710A	400	530	375				7.5	4	321	739	1000		6
750	920	78	630	1850	718/750AC	400	530	112	750			5	2	234	768	901		4
	920	78	610	1510	718/750AC	400	530	115				5	2	234	768	902		4
	1090	150	1270	3630	70/750A	350	470	450				7.5	4	341	779	1062		6

800 mm-1250 mm Single Row Angular Contact Ball Bearings Specs

Basic Size			Basic load rating dynamic, static		Code	Limiting Speed		Mass	Dimensions						Abutment and chamfer dimensions					Calculation coefficient
Basic Size			Basic load rating dynamic, static		Code	Limiting Speed		Mass	Dimensions						Abutment and chamfer dimensions					Calculation coefficient
d	D	B	C	C。		grease	oil		d	d_1≈	D_1≈	r_1.2min	r_3.4min	a	d_amin	D_amax	D_bmax	r_amax	r_bmax	e	X	Y	Y₀
mm			kN		-	r/min		kg												-
800	1150	155	1320	3780	70/80OA	330	440	510	800			7.5	4	359	830	1120		6
850	1030	82	670	1800	718/85OAC	340	450	140	850			5	5	312	868	1012		4
850	1220	165	1490	4600	70/850A	290	400	605	850			7.5	4	381	880	1191		6
900	1280	170	1520	4980	70/900A	270	370	675	900			7.5	4	400	930	1251		6
950	1360	180	1590	5150	70/950A	250	350	805	950			7.5	4	424	979	1331		6
1000	1220	100	830	2460	718/1000A	260	360	245	1000			6	3	370	1023	1197		5
	1320	103	832	2450	307101C	240	340	370				6	6	458	1028	1292		5
	1420	185	1590	5450	70/1000A	210	310	905				7.5	4	442	1029	1390		6
1060	1500	195	1640	5650	70/1060A	200	310	1060	1060			9.5	5	467	1095	1465		8
1120	1360	106	1030	3700	718/1120A	190	290	329	1120			6	3	411	1145	1336		5
1120	1580	200	1680	5800	70/1120A	180	280	1160	1120			9.5	5	497	1155	1545		8
1180	1660	212	1700	6000	70/1180A	170	230	1350	1180			9.5	5	516	1215	1625		8
1250	1500	80	780	2650	708/1250A	180	250	300	1250			6	3	437	1275	1476		5
	1500	112	1110	3900	718/1250A	180	250	395				6	3	453	1275	1476		5
	1750	218	1740	6500	70/1250A	160	220	1600				9.5	5	542	1284	1716		8

Contact WKB For Quality Rolling Bearings

Related Angular Contact Ball Bearings

Double Row Angular Contact Ball Bearings

Four-Point Angular Contact Ball Bearings

Blog
