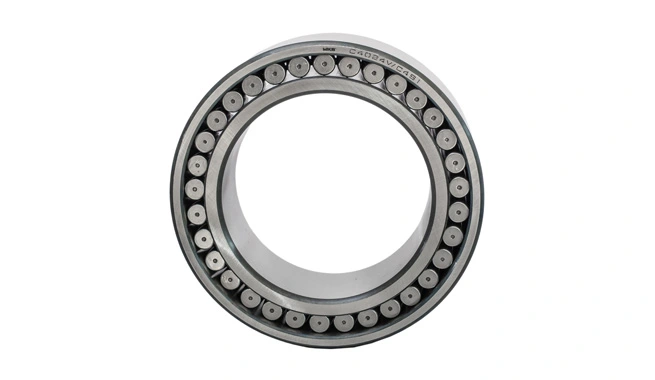

CARB Bearings with Adapter Sleeve combine the advantages of CARB toroidal roller bearings with adapter sleeves for simplified mounting. These bearings offer self-alignment, high load capacity, and easy assembly. Ideal for industrial applications, they accommodate axial displacement and misalignment, ensuring reliable performance and facilitating efficient maintenance in various mechanical systems.
Adapter Sleeve Convenience: CARB Roller Bearing with Adapter Sleeve combines the self-aligning features of CARB bearings with the ease of adapter sleeve mounting, simplifying installation.
Versatile Load Capacity: These bearings retain the high load-carrying capacity of CARB design, making them suitable for a wide range of industrial applications.
Axial Displacement and Misalignment: Just like standard CARB bearings, this version accommodates axial displacement and misalignment, maintaining operational flexibility.
Efficient Maintenance: The combined design allows for easier assembly and disassembly, enhancing maintenance procedures and reducing downtime in various mechanical systems.

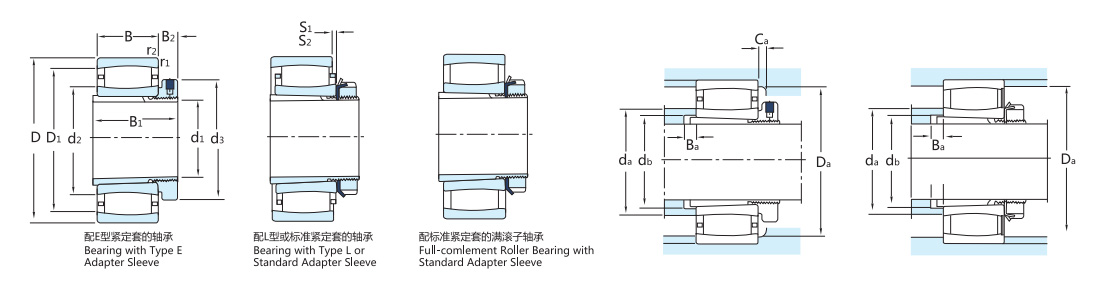

Basic Size | Basic load rating dynamic static | Fatigue load limit | Rated Speed | Mass | Designation(Design) | Dimensions | Abutment and chamfer dimensions | Calculation factors | ||||||||||||||||||||
d1 | D | B | C | Co | Pu | Reference Speed | Limit Speed | Bearing | Adapter Sleeve | d1 | d2~ | d3 | D1~ | B1 | B2 | r1.2min | S11)~ | S21)~ | damax | dbmin | Damin | Damax | Bamin | Ca2)min | ramax | K1 | K2 | |
mm | kN | kN | r/min | kg | - | mm | mm | - | ||||||||||||||||||||
75 | 150 | 36 | 275 | 320 | 36.5 | 4300 | 5600 | 3.70 | C2217K | H317E | 75 | 104 | 110 | 133 | 63 | 19 | 2 | 7.1 | 110 | 91 | 125 | 139 | 12 | 1.3 | 2 | 0.114 | 0.105 | |
150 | 36 | 315 | 390 | 44 | 1800 | 3.85 | C2217KV | H317 | 104 | 110 | 133 | 63 | 18 | 2 | 7.1 | 1.7 | 115 | 91 | 139 | 12 | 2 | 0.114 | 0.105 | |||||
180 | 60 | 540 | 600 | 65.5 | 3200 | 4300 | 8.50 | C2317K | H2317 | 110 | 110 | 153 | 82 | 18 | 3 | 12.1 | 125 | 94 | 145 | 166 | 7 | 2.4 | 2.5 | 0.105 | 0.105 | |||
80 | 160 | 40 | 325 | 380 | 42.5 | 3800 | 5300 | 4. 50 | C2218K | H318E | 80 | 112 | 120 | 144 | 65 | 19 | 2 | 9.5 | 120 | 96 | 130 | 149 | 10 | 1.4 | 2 | 0.104 | 0.117 | |
160 | 40 | 365 | 440 | 49 | 1500 | 4.60 | C2218KV | H318 | 112 | 120 | 144 | 65 | 18 | 2 | 9.5 | 5.4 | 125 | 96 | 149 | 10 | 2 | 0.104 | 0.117 | |||||
190 | 64 | 610 | 695 | 73.5 | 2800 | 4000 | 10.0 | C2318K | H2318 | 119 | 120 | 166 | 86 | 18 | 3 | 9.6 | 135 | 100 | 155 | 176 | 7 | 2 | 2.5 | 0.108 | 0.101 | |||
85 | 170 | 43 | 360 | 400 | 44 | 3800 | 5000 | 5.30 | C2219K | H319E | 85 | 113 | 125 | 149 | 68 | 20 | 2.1 | 10.5. | 112 | 102 | 149 | 158 | 9 | 4.2 | 2 | 0.114 | 0.104 | |
200 | 67 | 610 | 695 | 73.5 | 2800 | 4000 | 11.5 | C2319K | H2319 | 120 | 125 | 166 | 90 | 19 | 3 | 12.6 | 135 | 105 | 155 | 186 | 7 | 2.1 | 2.5 | 0.103 | 0.106 | |||
90 | 165 | 52 | 475 | 655 | 71 | 1300 | 6.10 | C3 120KV | H3120E | 90 | 119 | 130 | 150 | 76 | 20 | 2 | 10 | 4.7 | 130 | 106 | 154 | 6 | 2 | 0.1 | 0.112 | |||
180 | 46 | 415 | 465 | 47.5 | 3600 | 4800 | 6.30 | C2220K | H320E | 118 | 130 | 157 | 71 | 21 | 2.1 | 10.1. | 130 | 108 | 150 | 168 | 8 | 0.9 | 2 | 0.108 | 0.11 | |||
215 | 73 | 800 | 880 | 91.5 | 2600 | 3600 | 14.5 | C2320K | H2320 | 126 | 130 | 185 | 97 | 20 | 3 | 11.2 | 150 | 110 | 170 | 201 | 7 | 3.2 | 2.5 | 0.113 | 0.096 | |||
100 | 170 | 45 | 355 | 480 | 51 | 3200 | 4500 | 5.50 | C3022K | H322E | 100 | 128 | 145 | 156 | 77 | 21.5 | 2 | 9.5 | 127 | 118 | 157 | 160 | 14 | 4 | 2 | 0.107 | 0.11 | |
200 | 53 | 530 | 620 | 64 | 3200 | 4300 | 8.80 | C2222K | H322E | 132 | 145 | 176 | 77 | 21.5 | 2.1 | 11.1 | 150 | 118 | 165 | 188 | 6 | 1.9 | 2 | 0.113 | 0.103 | |||
110 | 180 | 46 | 375 | 530 | 55 | 3000 | 4000 | 5.70 | C3024K | H3024E | 110 | 138 | 155 | 166 | 72 | 26 | 2 | 10.6 | 145 | 127 | 160 | 170 | 7 | 0.9 | 2 | 0.111 | 0.109 | |
180 | 46 | 430 | 640 | 67 | 1400 | 5.85 | C3024KV | H3024 | 138 | 145 | 166 | 72 | 22 | 2 | 10.6 | 3.8 | 150 | 127 | 170 | 7 | 2 | 0.111 | 0.109 | |||||
215 | 58 | 610 | 710 | 72 | 3000 | 4000 | 8.60 | C2224K | H3124L | 144 | 145 | 191 | 88 | 22 | 2.1 | 13 | 143 | 128 | 192 | 203 | 11 | 5.4 | 2 | 0.113 | 0.103 | |||
215 | 76 | 750 | 980 | 98 | 2400 | 3200 | 14.2 | C3224K | H2324L | 149 | 145 | 190 | 112 | 22 | 2.1 | 17.1 | 160 | 131 | 180 | 203 | 17 | 2.4 | 2 | 0.103 | 0.108 | |||
115 | 200 | 52 | 390 | 585 | 58.5 | 2800 | 3800 | 8.70 | C3026K | H3026 | 115 | 154 | 155 | 180 | 80 | 23 | 2 | 16.5 | 152 | 137 | 182 | 190 | 8 | 4.4 | 2 | 0.123 | 0.1 | |
230 | 64 | 735 | 930 | 93 | 2800 | 3800 | 14.0 | C2226K | H3126L | 152 | 155 | 199 | 92 | 23 | 3 | 9.6 | 170 | 138 | 185 | 216 | 8 | 1.1 | 2. 5 | 0.113 | 0.101 | |||
125 | 210 | 53 | 490 | 735 | 72 | 2600 | 3400 | 9.30 | C3028K | H3028 | 125 | 163 | 165 | 194 | 82 | 24 | 2 | 11 | 161 | 147 | 195 | 200 | 8 | 4.7 | 2 | 0.102 | 0.116 | |
250 | 68 | 830 | 1060 | 102 | 2400 | 3400 | 17.5 | C2228K | H3128L | 173 | 165 | 223 | 97 | 24 | 3 | 13.7 | 190 | 149 | 210 | 236 | 8 | 2.3 | 2. 5 | 0.109 | 0.108 | |||
135 | 225 | 56 | 540 | 850 | 83 | 2400 | 3200 | 12.0 | C3030KMB | H3030E | 135 | 173 | 180 | 204 | 87 | 26 | 2.1 | 8.7 | 172 | 158 | 200 | 214 | 8 | 1.3 | 2 | 0.108 | ||
250 | 80 | 880 | 1290 | 122 | 2000 | 2800 | 20.0 | C3 130K | H3130L | 182 | 180 | 226 | 111 | 26 | 2.1 | 13.9 | 195 | 160 | 215 | 238 | 8 | 2.3 | 2 | 0.12 | 0.092 | |||
270 | 73 | 980 | 1220 | 116 | 2400 | 3200 | 23.0 | C2230K | H3130L | 177 | 180 | 236 | 111 | 26 | 3 | 11.2 | 200 | 160 | 215 | 256 | 15 | 2.5 | 2.5 | 0.119 | 0.096 | |||
140 | 240 | 60 | 600 | 980 | 93 | 2200 | 3000 | 14.5 | C3032K | H3032 | 140 | 187 | 190 | 218 | 93 | 27.5 | 2.1 | 15 | 186 | 168 | 220 | 229 | 8 | 5.1 | 2 | 0.115 | 0.106 | |
270 | 86 | 1000 | 1400 | 129 | 1900 | 2600 | 28.0 | C3132KMB | H3132E | 190 | 190 | 240 | 119 | 27.5 | 2.1 | 10.3 | 189 | 170 | 229 | 258 | 8 | 3.8 | 2 | 0.099 | ||||
290 | 104 | 1370 | 1830 | 170 | 1700 | 2400 | 36.5 | C3232K | H2332L | 194 | 190 | 256 | 147 | 27.5 | 3 | 19.3 | 215 | 174 | 245 | 276 | 18 | 2.6 | 2.5 | 0.112 | 0.096 | |||
150 | 260 | 67 | 750 | 1160 | 108 | 2000 | 2800 | 18.0 | C3034K | H3034 | 150 | 200 | 200 | 237 | 101 | 28.5 | 2.1 | 12.5 | 200 | 179 | 238 | 249 | 8 | 5.8 | 2 | 0.105 | 0.112 | |
280 | 88 | 1040 | 1460 | 137 | 1900 | 2600 | 29.0 | C3134K | H3134L | 200 | 200 | 249 | 122 | 28.5 | 2.1 | 21 | 200 | 180 | 250 | 268 | 8 | 7.6 | 2 | 0.101 | 0.109 | |||
310 | 86 | 1270 | 1630 | 150 | 2000 | 2600 | 35.0 | C2234K | H3134L | 209 | 200 | 274 | 122 | 28.5 | 4 | 16.4 | 230 | 180 | 255 | 293 | 10 | 3 | 3 | 0.114 | 0.1 | |||
160 | 280 | 74 | 880 | 1340 | 125 | 1900 | 2600 | 23.0 | C3036K | H3036 | 160 | 209 | 210 | 251 | 109 | 29.5 | 2.1 | 15.1 | 220 | 189 | 240 | 269 | 8 | 2 | 2 | 0.112 | 0.105 | |
300 | 96 | 1250 | 1730 | 156 | 1800 | 2400 | 34.0 | C3136K | H3136L | 210 | 240 | 266 | 131 | 29.5 | 3 | 23.2 | 230 | 191 | 255 | 286 | 8 | 2.2 | 2.5 | 0.102 | 0.111 | |||
320 | 112 | 1530 | 2200 | 196 | 1 500 | 2000 | 47.0 | C3236K | H2336. | 228 | 230 | 289 | 161 | 30 | 4 | 27.3 | 245 | 195 | 275 | 303 | 22 | 3.2 | 3 | 0.107 | 0.104 | |||
170 | 290 | 75 | 930 | 1460 | 132 | 1800 | 2400 | 24.0 | C3038K | H3038 | 170 | 225 | 220 | 266 | 112 | 30.5 | 2.1 | 16.1 | 235 | 199 | 255 | 279 | 9 | 1.9 | 2 | 0.113 | 0.107 | |
320 | 104 | 1530 | 2200 | 196 | 1600 | 2200 | 44.0 | C3138K | H3138L | 228 | 220 | 289 | 141 | 30.5 | 3 | 19 | 227 | 202 | 290 | 306 | 9 | 9.1 | 2.5 | 0.096 | 0.113 | |||
340 | 92 | 1370 | 1730 | 156 | 1800 | 2400 | 43.0 | C2238K | H3138 ; | 224 | 240 | 296 | 141 | 31 | 4 | 22.5 | 250 | 202 | 275 | 323 | 21 | 1.6 | 3 | 0.108 | 0.108 | |||
180 | 310 | 82 | 1120 | 1730 | 153 | 1 700 | 2400 | 30.0 | C3040K | H3040 | 180 | 235 | 240 | 285 | 120 | 31.5 | 2.1 | 15.2 | 250 | 210 | 275 | 299 | 9 | 2.9 | 2 | 0.123 | 0.095 | |
340 | 112 | 1600 | 2320 | 204 | 1500 | 2000 | 50.5 | C3140K | H3140 | 245 | 250 | 305 | 150 | 32 | 3 | 27.3 | 260 | 212 | 307 | 326 | 9 | 2.5 | 0.108 | 0.104 | ||||
200 | 340 | 90 | 1320 | 2040 | 176 | 1600 | 2200 | 37.0 | C3044K | OH3044H | 200 | 257 | 260 | 310 | 126 | 30 | 41 | 3 | 17.2 | 270 | 231 | 295 | 327 | 9 | 3.1 | 2.5 | 0.114 | 0.104 |
370 | 120 | 1900 | 2900 | 245 | 1 400 | 1900 | 64.0 | C3144K | OH3144HTL | 268 | 260 | 333 | 161 | 30 | 41 | 4 | 22.3 | 290 | 233 | 315 | 353 | 9 | 3.5 | 3 | 0.114 | 0.097 | ||
400 | 108 | 2000 | 2500 | 216 | 1500 | 2000 | 69.0 | C2244K | 0H3144H | 259 | 280 | 350 | 161 | 35 | 4 | 20.5 | 295 | 233 | 320 | 383 | 21 | 1.7 | 3 | 0.113 | 0.101 | |||
220 | 360 | 92 | 1340 | 2160 | 180 | 1400 | 2000 | 42.5 | C3048K | 0H3048H | 220 | 276 | 290 | 329 | 133 | 34 | 46 | 3 | 19.2 | 290 | 251 | 315 | 347 | 11 | 1.3 | 2.5 | 0.113 | 0.106 |
400 | 128 | 2320 | 3450 | 285 | 1300 | 1700 | 77.0 | C3148K | OH3148HTL | 281 | 290 | 357 | 172 | 34 | 46 | 4 | 20.4 | 305 | 254 | 335 | 383 | 11 | 3.7 | 3 | 0.116 | 0.095 | ||
240 | 400 | 104 | 1760 | 2850 | 232 | 1300 | 1800 | 59.0 | C3052K | 0H3052H | 240 | 305 | 310 | 367 | 145 | 34 | 46 | 4 | 19.3 | 325 | 272 | 350 | 385 | 11 | 3.4 | 3 | 0.122 | 0.096 |
440 | 144 | 2650 | 4050 | 325 | 1100 | 1500 | 105 | C3152K | OH3152HTL | 314 | 310 | 394 | 190 | 34 | 46 | 4 | 26.4 | 340 | 276 | 375 | 423 | 11 | 4.1 | 3 | 0.115 | 0.096 | ||
260 | 420 | 106 | 1860 | 3100 | 250 | 1200 | 1600 | 65.0 | C3056K | OH3056H | 260 | 328 | 330 | 389 | 152 | 38 | 50 | 4 | 21.3 | 350 | 292 | 375 | 405 | 12 | 1.8 | 3 | 0.121 | 0.098 |
460 | 146 | 2850 | 4500 | 355 | 1100 | 1400 | 115 | C3156K | OH3156HTL | 336 | 330 | 416 | 195 | 38 | 50 | 5 | 28.4 | 360 | 296 | 395 | 440 | 12 | 4.1 | 4 | 0.115 | 0.097 | ||
280 | 460 | 118 | 2160 | 3750 | 290 | 1 100 | 1500 | 91.0 | C3060KM | OH3060H | 280 | 352 | 360 | 417 | 168 | 42 | 54 | 4 | 20 | 375 | 313 | 405 | 445 | 12 | 1.7 | 3 | 0.123 | 0.095 |
500 | 160 | 3250 | 5200 | 400 | 1000 | 1300 | 150 | C3160K | OH3160H | 362 | 380 | 448 | 208 | 40 | 53 | 5 | 30.5 | 390 | 318 | 425 | 480 | 12 | 4.9 | 4 | 0.106 | 0.106 | ||
300 | 480 | 121 | 2280 | 4000 | 310 | 1000 | 1400 | 95.0 | C3064KM | 0H3064H | 300 | 376 | 380 | 440 | 171 | 42 | 55 | 4 | 23.3 | 395 | 334 | 430 | 465 | 13 | 1.8 | 3 | 0.121 | 0.098 |
540 | 176 | 4150 | 6300 | 480 | 950 | 1300 | 190 | C3164KM | 0H3164H | 372 | 400 | 476 | 226 | 42 | 56 | 5 | 26.7 | 410 | 338 | 455 | 520 | 13 | 3.9 | 4 | 0.114 | 0.096 | ||
320 | 520 | 133 | 2900 | 5000 | 375 | 950 | 1300 | 125 | C3068KM | 0H3068H | 320 | 402 | 400 | 482 | 187 | 45 | 58 | 5 | 25.4 | 430 | 355 | 465 | 502 | 14 | 1.9 | 4 | 0.12 | 0.099 |
580 | 190 | 4900 | 7500 | 560 | 850 | 1200 | 235 | C3168KM | OH3168H | 405 | 440 | 517 | 254 | 55 | 72 | 5 | 25.9 | 445 | 360 | 490 | 560 | 14 | 4.2 | 4 | 0.118 | 0.093 | ||
340 | 480 | 90 | 1760 | 3250 | 250 | 1000 | 1400 | 73.0 | C3972KM | OH3972HE | 340 | 394 | 420 | 450 | 144 | 45 | 58 | 3 | 17.2 | 405 | 372 | 440 | 467 | 14 | 1.6 | 2.5 | 0.127 | 0.104 |
540 | 134 | 2900 | 5000 | 375 | 900 | 1200 | 135 | C3072KM | OH3072H | 417 | 420 | 497 | 188 | 45 | 58 | 5 | 26.4 | 445 | 375 | 480 | 522 | 14 | 2 | 4 | 0.12 | 0.099 | ||
600 | 192 | 5000 | 8000 | 585 | 800 | 1100 | 250 | C3172KM | OH3172H | 423 | 460 | 537 | 259 | 58 | 75 | 5 | 27.9 | 460 | 380 | 510 | 580 | 14 | 3.9 | 4 | 0.117 | 0.094 | ||
360 | 520 | 106 | 2120 | 4000 | 300 | 950 | 1300 | 96.0 | C3976KM | 0H3976H | 360 | 428 | 450 | 489 | 164 | 48 | 62 | 4 | 21 | 450 | 393 | 475 | 505 | 15 | 1.8 | 3 | 0.129 | 0.098 |
560 | 135 | 3000 | 5200 | 390 | 900 | 1200 | 145 | C3076KM | 0H3076H | 431 | 450 | 511 | 193 | 48 | 62 | 5 | 27 | 460 | 396 | 495 | 542 | 15 | 2 | 4 | 0.12 | 0.1 | ||
620 | 194 | 4400 | 7200 | 520 | 750 | 1000 | 298 | C3176KMB | OH3176HE | 466 | 490 | 551 | 264 | 60 | 77 | 5 | 25.4 | 445 | 401 | 526 | 600 | 15 | 7.3 | 4 | 0.106 | |||
380 | 540 | 106 | 2130 | 4000 | 290 | 900 | 1300 | 102 | C3980KM | 0H3980HE | 380 | 439 | 470 | 501 | 168 | 52 | 66 | 4 | 21 | 461 | 413 | 487 | 525 | 15 | 1.8 | 3 | 0.13 | 0.098 |
600 | 148 | 3650 | 6200 | 450 | 800 | 1100 | 175 | C3080KM | 0H3080H | 458 | 470 | 553 | 210 | 52 | 66 | 5 | 30.6 | 480 | 417 | 525 | 582 | 15 | 2.1 | 4 | 0.121 | 0.099 | ||
650 | 200 | 4800 | 8300 | 585 | 700 | 950 | 325 | C3180KM | 0H3180H | 488 | 520 | 589 | 272 | 62 | 82 | 6 | 50.7 | 526 . | 421 | 564 | 624 | 15 | 2.5 | 5 | 0.106 | 0.109 | ||
400 | 560 | 106 | 2160 | 4250 | 310 | 850 | 1200 | 105 | C3984KM | OH3984HE | 400 | 462 | 490 | 522 | 168 | 52 | 66 | 4 | 21.3 | 480 | 433 | 515 | 545 | 15 | 1.8 | 3 | 0.132 | 0.098 |
620 | 150 | 3800 | 6400 | 465 | 800 | 1100 | 180 | C3084KM | OH3084H | 475 | 490 | 570 | 212 | 52 | 66 | 5 | 32.6 | 510 | 437 | 550 | 602 | 16 | 2.2 | 4 | 0.12 | 0.1 | ||
700 | 224 | 6000 | 10400 | 710 | 670 | 900 | 395 | C3184KM | 0H3184H | 508 | 540 | 618 | 304 | 70 | 90 | 6 | 34.8 | 540 | 443 | 595 | 674 | 16 | 3.8 | 5 | 0.113 | 0.098 | ||
410 | 600 | 118 | 2600 | 5300 | 375 | 800 | 1100 | 155 | C3988KMB | 0H3988HE | 410 | 494 | 520 | 560 | 189 | 60 | 77 | 4 | 20 | 517 | 454 | 546 | 585 | 17 | 1.9 | 3 | 0.133 | 0.095 |
650 | 157 | 3750 | 6400 | 465 | 750 | 1000 | 250 | C3088KMB | 0H3088HE | 491 | 520 | 587 | 228 | 60 | 77 | 6 | 19.7 | 489 | 458 | 565 | 627 | 17 | 1.7 | 5 | 0.105 | |||
720 | 226 | 6700 | 11400 | 680 | 630 | 850 | 470 | C3188KMB | OH3188HE | 522 | 560 | 647 | 307 | 70 | 90 | 6 | 16 | 521 | 463 | 613 | 694 | 17 | 7.5 | 5 | 0.099 | |||
430 | 620 | 118 | 2700 | 5300 | 375 | 800 | 1100 | 160 | C3992KMB | OH3992HE | 430 | 508 | 540 | 577 | 189 | 60 | 77 | 4 | 11 | 505 | 474 | 580 | 605 | 17 | 10.4 | 3 | 0.12 | |
680 | 163 | 4000 | 7500 | 510 | 700 | 950 | 270 | C3092KM | OH3092H | 539 | 540 | 624 | 234 | 60 | 77 | 6 | 33.5 | 565 | 478 | 605 | 657 | 17 | 2.3 | 5 | 0.114 | 0.108 | ||
760 | 240 | 6800 | 12000 | 800 | 600 | 800 | 540 | C3192KM | OH3192H | 559 | 580 | 679 | 326 | 75 | 95 | 7.5 | 51 | 570 | 484 | 655 | 728 | 17 | 4.2 | 6 | 0.108 | 0.105 | ||
450 | 650 | 128 | 3100 | 6100 | 430 | 750 | 1000 | 185 | C3996KM | OH3996H | 450 | 529 | 560 | 604 | 200 | 60 | 77 | 5 | 20.4 | 550 | 496 | 590 | 632 | 18 | 2 | 4 | 0.133 | 0.095 |
700 | 165 | 4050 | 7800 | 530 | 670 | 900 | 275 | C3096KM | 0H3096H | 555 | 560 | 640 | 237 | 60 | 77 | 6 | 35.5 | 580 | 499 | 625 | 677 | 18 | 2.3 | 5 | 0.113 | 0.11 | ||
790 | 248 | 6950 | 12500 | 830 | 560 | 750 | 620 | C3196KMB | 0H3196HE | 583 | 620 | 700 | 335 | 75 | 95 | 7.5 | 24 | 580 | 505 | 705 | 758 | 18 | 20.6 | 6 | 0.104 | |||
470 | 670 | 128 | 3150 | 6300 | 440 | 700 | 950 | 195 | C39 /500KM | OH39/500HE | 470 | 556 | 580 | 631 | 208 | 68 | 85 | 5 | 20.4 | 580 | 516 | 615 | 652 | 18 | 2 | 4 | 0.135 | 0.095 |
720 | 167 | 4250 | 8300 | 560 | 630 | 900 | 305 | C30/500KM | OH30/500H | 572 | 580 | 656 | 247 | 68 | 85 | 6 | 37.5 | 600 | 519 | 640 | 697 | 18 | 2.3 | 5 | 0.113 | 0.111 | ||
830 | 264 | 7500 | 12700 | 850 | 530 | 750 | 690 | C31/500KM | OH31 /500H | 605 | 630 | 738 | 356 | 80 | 100 | 7.5 | 75.3 | 655 | 527 | 705 | 798 | 18 | 6 | 0.099 | 0.116 | |||
500 | 710 | 136 | 3550 | 7100 | 490 | 670 | 900 | 230 | C39/530KM | OH39 /530HE | 500 | 578 | 630 | 657 | 216 | 68 | 90 | 5 | 28.4 | 600 | 547 | 640 | 692 | 20 | 2.2 | 4 | 0.129 | 0.101 |
780 | 185 | 5100 | 9500 | 640 | 600 | 800 | 390 | C30/530KM | 0H30/530H | 601 | 630 | 704 | 265 | 68 | 90 | 6 | 35.7 | 635 | 551 | 685 | 757 | 20 | 2.5 | 5 | 0.12 | 0.101 | ||
870 | 272 | 8800 | 15600 | 1000 | 500 | 670 | 770 | C31/530KM | OH31 /530H | 635 | 670 | 781 | 364 | 80 | 105 | 7.5 | 44.4 | 680 | 558 | 745 | 838 | 20 | 4.8 | 6 | 0.115 | 0.097 | ||
530 | 750 | 140 | 3600 | 7350 | 490 | 600 | 850 | 260 | C39/560KM | 0H39/560HE | 530 | 622 | 650 | 701 | 227 | 75 | 97 | 5 | 32.4 | 645 | 577 | 685 | 732 | 20 | 2.3 | 4 | 0.128 | 0.104 |
820 | 195 | 5600 | 11000 | 720 | 530 | 750 | 440 | C30/560KM | OH30/560H | 660 | 650 | 761 | 282 | 75 | 97 | 6 | 45.7 | 695 | 582 | 740 | 797 | 20 | 2.7 | 5 | 0.116 | 0.106 | ||
920 | 280 | 9500 | 17000 | 1100 | 480 | 670 | 930 | C31 /560KMB | OH31/560HE | 664 | 710 | 808 | 377 | 85 | 110 | 7.5 | 28 | 660 | 589 | 810 | 888 | 20 | 23.8 | 6 | 0.111 | |||
560 | 800 | 150 | 4000 | 8800 | 570 | 560 | 750 | 325 | C39 /600KM | 0H39/600HE | 560 | 666 | 700 | 744 | 239 | 75 | 97 | 5 | 32.4 | 685 | 619 | 725 | 782 | 22 | 2.4 | 4 | 0.131 | 0.1 |
870 | 200 | 6300 | 12200 | 780 | 500 | 700 | 520 | C30/ 600KM | 0H30/600H | 692 | 700 | 805 | 289 | 75 | 97 | 6 | 35.9 | 725 | 623 | 775 | 847 | 22 | 2.7 | 5 | 0.125 | 0.098 | ||
980 | 300 | 10200 | 18000 | 1140 | 430 | 600 | 1135 | C31 / 600KMB | OH31/ 600HE | 705 | 750 | 871 | 399 | 85 | 110 | 7.5 | 26.1 | 700 | 632 | 827 | 948 | 22 | 5.1 | 6 | 0.107 | |||
600 | 850 | 165 | 4650 | 10000 | 640 | 530 | 700 | 420 | C39 /630KM | OH39 /630HE | 600 | 700 | 730 | 784 | 254 | 75 | 97 | 6 | 35.5 | 720 | 650 | 770 | 827 | 22 | 2.4 | 5 | 0.121 | 0.11 |
920 | 212 | 6800 | 12900 | 830 | 480 | 670 | 635 | C30/ 630KM | 0H30/630H | 717 | 730 | 840 | 301 | 75 | 97 | 7.5 | 48.1 | 755 | 654 | 810 | 892 | 22 | 2.9 | 6 | 0.118 | 0.104 | ||
1030 | 315 | 11800 | 20800 | 1290 | 400 | 560 | 1310 | C31 / 630KMB | OH31/630HE | 741 | 800 | 916 | 424 | 95 | 120 | 7.5 | 23.8 | 740 | 663 | 868 | 998 | 22 | 5.7 | 6 | 0.102 |
Basic Size | Basic load rating dynamic static | Fatigue load limit | Rated Speed | Mass | Designation(Design) | Dimensions | Abutment and chamfer dimensions | Calculation factors | ||||||||||||||||||||
d1 | D | B | C | Co | Pu | Reference Speed | Limit Speed | Bearing | Adapter Sleeve | d1 | d2~ | d3 | D1~ | B1 | B2 | r1.2min | S11)~ | S21)~ | damax | dbmin | Damin | Damax | Bamin | Ca2)min | ramax | K1 | K2 | |
mm | kN | kN | r/min | kg | - | mm | mm | - | ||||||||||||||||||||
630 | 900 | 170 | 5100 | 11600 | 720 | 480 | 630 | 490 | C39/ 670KMB | OH39/670HE | 630 | 761 | 780 | 848 | 264 | 80 | 102 | 6 | 24.9 | 760 | 691 | 833 | 877 | 22 | 4.2 | 5 | 0.113 | |
980 | 230 | 8150 | 16300 | 1000 | 430 | 600 | 750 | C30/670KM | 0H30/670H | 775 | 780 | 904 | 324 | 80 | 102 | 7.5 | 41.1 | 820 | 696 | 875 | 952 | 22 | 2.9 | 6 | 0.121 | 0.101 | ||
1090 | 336 | 12000 | 22000 | 1320 | 380 | 530 | 1550 | C31 /670KMB | OH31/670HE | 797 | 850 | 963 | 456 | 106 | 131 | 7.5 | 33 | 795 | 705 | 965 | 1058 | 22 | 28 | 6 | 0.104 | |||
670 | 950 | 180 | 6000 | 12500 | 780 | 450 | 630 | 520 | C39/710KM | OH39/710HE | 670 | 773 | 830 | 877 | 286 | 90 | 112 | 6 | 30.7 | 795 | 732 | 850 | 927 | 26 | 2.7 | 5 | 0.131 | 0.098 |
1030 | 236 | 8800 | 17300 | 1060 | 400 | 560 | 865 | C30/ 710KM | 0H30/ 710H | 807 | 830 | 945 | 342 | 90 | 112 | 7.5 | 47.3 | 850 | 736 | 910 | 1002 | 26 | 3.2 | 6 | 0.119 | 0.104 | ||
1150 | 345 | 12700 | 24000 | 1430 | 360 | 480 | 1800 | C31/710KMB | OH31/710HE | 848 | 900 | 1012 | 467 | 106 | 135 | 9.5 | 34 | 845 | 745 | 1015 | 1110 | 26 | 28.6 | 8 | 0.102 | |||
710 | 1000 | 185 | 6100 | 13400 | 815 | 430 | 560 | 590 | C39/750KM | OH39/750HE | 710 | 830 | 870 | 933 | 291 | 90 | 112 | 6 | 35.7 | 855 | 772 | 910 | 977 | 26 | 2.7 | 5 | 0.131 | 0.101 |
1090 | 250 | 9500 | 19300 | 1160 | 380 | 530 | 1060 | C30/ 750KMB | 0H30/ 750HE | 854 | 870 | 993 | 356 | 90 | 112 | 7.5 | 28.6 | 852 | 778 | 991 | 1062 | 26 | 7.4 | 6 | 0.11 | |||
1220 | 365 | 13700 | 30500 | 1800 | 320 | 450 | 2200 | C31 / 750KMB | OH31/750HE | 884 | 950 | 1077 | 493 | 112 | 141 | 9.5 | 33 | 883 | 787 | 1025 | 1180 | 26 | 9.3 | 8 | 0.094 | |||
750 | 1060 | 195 | 5850 | 15300 | 915 | 380 | 530 | 750 | C39/ 800KMB | OH39/800HE | 750 | 885 | 920 | 990 | 303 | 90 | 112 | 6 | 28.1 | 883 | 825 | 971 | 1037 | 28 | 5.3 | 5 | 0.106 | |
1150 | 258 | 9150 | 18600 | 1120 | 360 | 480 | 1150 | C30/ 800KMB | OH30/800HE | 913 | 920 | 1047 | 366 | 90 | 112 | 7.5 | 25 | 910 | 829 | 1050 | 1122 | 28 | 22.3 | 6 | 0.111 | |||
1280 | 375 | 15600 | 30500 | 1760 | 300 | 400 | 2400 | C31 / 800KMB | OH31/ 800HE | 947 | 1000 | 1133 | 505 | 112 | 141 | 9.5 | 37 | 945 | 838 | 1135 | 1240 | 28 | 32.1 | 8 | 0.115 | |||
800 | 1120 | 200 | 7350 | 16300 | 965 | 360 | 480 | 785 | C39/850KM | OH39/ 850HE | 800 | 940 | 980 | 1053 | 308 | 90 | 115 | 6 | 35.9 | 960 | 876 | 1025 | 1097 | 28 | 2.9 | 5 | 0.135 | 0.098 |
1220 | 272 | 11600 | 24500 | 1480 | 320 | 450 | 1415 | C30/ 850KMB | OH30/850HE | 964 | 980 | 1113 | 380 | 90 | 115 | 7.5 | 27 | 963 | 880 | 1077 | 1192 | 28 | 7.7 | 6 | 0.097 | |||
1360 | 400 | 16000 | 32000 | 1830 | 280 | 380 | 2260 | C31 /850KMB | OH31/ 850HE | 1020 | 1060 | 1200 | 536 | 118 | 147 | 12 | 40 | 1015 | 890 | 1205 | 1312 | 28 | 33.5 | 10 | 0.11 | |||
850 | 1180 | 206 | 8150 | 1 8000 | 1060 | 340 | 450 | 900 | C39/900KMB | OH39/900HE | 850 | 989 | 1030 | 1113 | 326 | 100 | 125 | 6 | 20 | 985 | 924 | 1115 | 1157 | 30 | 18.4 | 5 | 0.132 | |
1280 | 280 | 12700 | 26500 | 1530 | 300 | 400 | 1540 | C30/900KMB | OH30/900HE | 1004 | 1030 | 1172 | 400 | 100 | 125 | 7.5 | 25.5 | 1002 | 931 | 1124 | 1252 | 30 | 3.3 | 6 | 0.1 | |||
900 | 1250 | 224 | 9300 | 22000 | 1250 | 300 | 430 | 1120 | C39/950KMB | OH39/950HE | 900 | 1042 | 1080 | 1167 | 344 | 100 | 125 | 7.5 | 14.5 | 1040 | 976 | 1139 | 1222 | 30 | 6.6 | 6 | 0.098 | |
1360 | 300 | 12900 | 27500 | 1560 | 280 | 380 | 1800 | C30/950KMB | OH30/950HE | 1080 | 1080 | 1240 | 420 | 100 | 125 | 7.5 | 30 | 1075 | 983 | 1245 | 1332 | 30 | 26.2 | 6 | 0.116 | |||
950 | 1420 | 308 | 13400 | 29000 | 1630 | 260 | 340 | 2000 | C30/ 1000KMB | 0H30/ 1000HE | 950 | 1136 | 1140 | 1294 | 430 | 100 | 125 | 7.5 | 30 | 1135 | 1034 | 1295 | 1392 | 33 | 26.7 | 6 | 0.114 | |
1580 | 462 | 22800 | 45500 | 2500 | 220 | 300 | 4300 | C31/ 1000KMB | OH31/ 1000HE | 1179 | 1240 | 1401 | 609 | 125 | 154 | 12 | 46 | 1175 | 1047 | 1405 | 1532 | 33 | 38.6 | 10 | 0.105 | |||
1000 | 1400 | 250 | 11000 | 26000 | 1430 | 260 | 360 | 1610 | C39/1060KMB | 0H39/1060HE | 1000 | 1175 | 1200 | 1323 | 372 | 100 | 125 | 7.5 | 25 | 1170 | 1090 | 1325 | 1392 | 33 | 23.4 | 6 | 0.11 |
