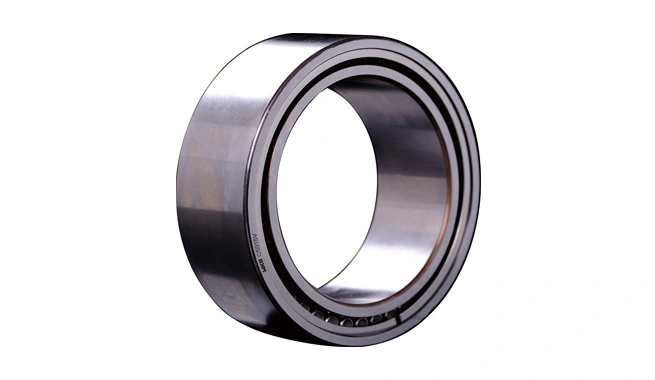

Sealed CARB Bearings

Name: Sealed CARB Bearings
Brand: WKB (Wafangdian) Bearing Technology Co., Ltd.
Price: 150-800 USD
Rating: 4.8 (50 reviews)

Sealed CARB Bearings combine the benefits of CARB toroidal roller bearings with integrated seals. These bearings offer self-alignment, high load capacity, and axial displacement compensation. The added sealing provides enhanced protection against contaminants and extends bearing life, making them ideal for demanding industrial applications requiring reliable performance in challenging environments.

Features of Sealed CARB Bearings

Integrated Seals: Sealed CARB Bearings feature built-in seals that provide effective protection against contaminants, enhancing bearing longevity and performance.
Self-Alignment: These bearings retain the self-aligning capabilities of CARB design, accommodating misalignment for reduced wear and improved operation.
High Load Capacity: Sealed CARB Roller Bearing offers exceptional load-carrying capacity, making them suitable for demanding industrial applications.
Axial Displacement Compensation: Just like standard CARB bearings, the sealed version accommodates axial displacement, providing versatility in assembly and operation while maintaining sealing benefits.

Products

Specs of Sealed CARB Bearings

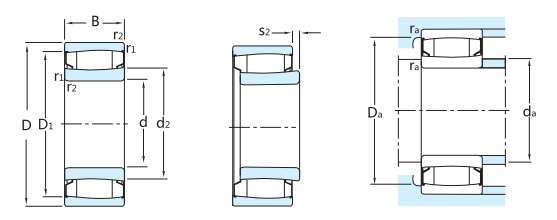

50 mm-200 mm Sealed CARB Bearings Specs

Sealed Carb Bearings

Basic Size			Basic load rating dynamic static		Fatigue load limit	Rated Speed	Mass	Designation(Design)	Dimensions					Abutment and chamfer dimensions				Calculation factors
d	D	B	C	C。	Pu	Limit Speed			d	d_2~	D_1~	r_1.2min	S₁₁^)~	d_amin	d_amax	D_amax	r_amax	K₁	K₂
mm			kN		kN	r/min	kg	-	mm					mm				-
50	72	40	140	224	24.5	200	0.56	C6910-2CS5V	50	57.6	64.9	0.6	2.8	53.2	57	68.8	0.6	0.113	0.091
60	85	45	150	240	26.5	170	0.83	C6912- 2CS5V	60	68	75.3	1	5.4	64.6	67	80.4	1	0.128	0.083
65	100	35	102	173	20.4	150	1.05	C4013-2CS5V	65	78.6	87.5	1.1	5.9	71	78.6	94	1	0.071	0.181
75	105	54	204	325	37.5	140	1.4	C6915-2CS5V	75	83.6.	95.5	1	7.1	79.6	83	100	1	0.073	0.154
75	115	40	143	193	23.2	130	1.4	C4015- 2CS5V	75	88.5	104	1.1	7.3	81	88	111	1	0.21	0.063
90	125	46	224	400	44	110	1.75	C5918-2CS5V	90	102	113	1.1	4.5	96	101	119	1	0.089	0.131
100	150	50	310	450	50	95	2.9	C4020-2CS5V	100	114	136	1.5	6.2	107	113	143	1.5	0.145	0.083
100	165	65	475	655	69.5	90	5.2	C4120-2CS5V	100	120	148	2	7.3	111	119	154	2	0.09	0.125
110	170	60	415	585	63	85	4.6	C4022-2CS5V	110	128	155	2	7.9	119	127	161	2	0.142	0.083
110	180	69	500	710	75	85	6.6	C4122-2CS5V	110	130	161	2	8.2	121	130	169	2	0.086	0.133
120	180	60	430	640	67	80	5.1	C4024-2CS5V	120	140	164	2	7.5	129	139	171	2	0.085	0.142
120	200	80	710	1000	100	75	9.7	C4124-2CS5V	120	140	176	2	8.2	131	139	189	2	0.126	0.087
130	200	69	550	830	85	70	7.5	C4026-2CS5V	130	152	182	2	8.2	139	151	191	2	0.089	0.133
130	210	80	750	1100	108	70	10.5	C4126- 2CS5V	130	153	190	2	7.5	141	152	199	2	0.09	0.126
140	210	69	570	900	88	67	7.9	C4028-2CS5V	140	163	193	2	8.7	149	162	201	2	0.133	0.089
140	225	85	780	1200	116	63	12.5	C4128-2CS5V	140	167	204	2.1	8.9	152	166	213	2	0.086	0.134
150	225	75	585	965	93	63	10	C4030-2CS5V	150	175	204	2.1	10.8	161	174	214	2	0.084	0.144
150	250	100	1220	1860	173	60	20.5	C4130-2CS5V	150	179	221	2.1	6.4	162	178	238	2	0.103	0.103
160	240	80	655	1100	104	60	12	C4032-2CS5V	160	188	218	2.1	11.2	170	187	230	2	0.154	0.079
160	270	109	1460	2160	200	53	26	C4132-2CS5V	160	190	241	2.1	6.7	172	189	258	2	0.101	0.105
170	260	90	965	1630	150	53	17	C4034-2CS5V	170	201	237	2.1	9	180	199	250	2	0.116	0.097
170	280	109	1530	2280	208	53	27	C4134-2CS5V	170	200	251	2.1	6.7	182	198	268	2	0.101	0.106
180	280	100	1320	2120	193	53	23.5	C4036-2CS5V	180	204	246	2.1	6.4	190	202	270	2	0.103	0.105
180	300	118	1760	2700	240	48	35	C4136-2CS5V	180	211	265	3	6.4	194	209	286	2.5	0.095	0.11
190	290	100	1370	2320	204	48	24.5	C4038-2CS5V	190	221	263	2.1	6.4	200	219	280	2	0.103	0.106
190	320	128	2040	3150	275	45	43.5	C4138-2CS5V	190	222	283	3	6.4	204	220	306	2.5	0.094	0.111
200	310	109	1630	2650	232	45	31.0	C4040-2CS5V	200	229	280	2.1	6.7	210	227	300	2	0.101.	0.108
200	340	140	2360	3650	315	43	54.5	C4140-2CS5V	200	237	301	3	7	214	235	326	2.5	0.092	0.112
